Viewing and saving the comparison data

ModelSim performs the comparison and displays the compared signals in the Wave window.

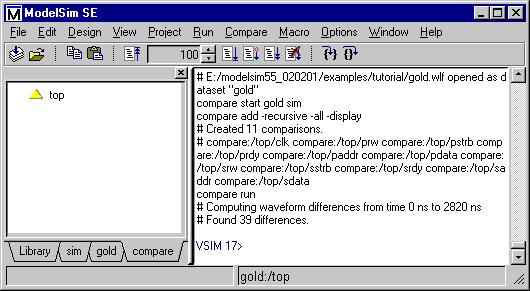

The Compare tab in the Main window shows the region that was compared, and the transcript area shows the number of differences found between the timing of the Reference and Test datasets.

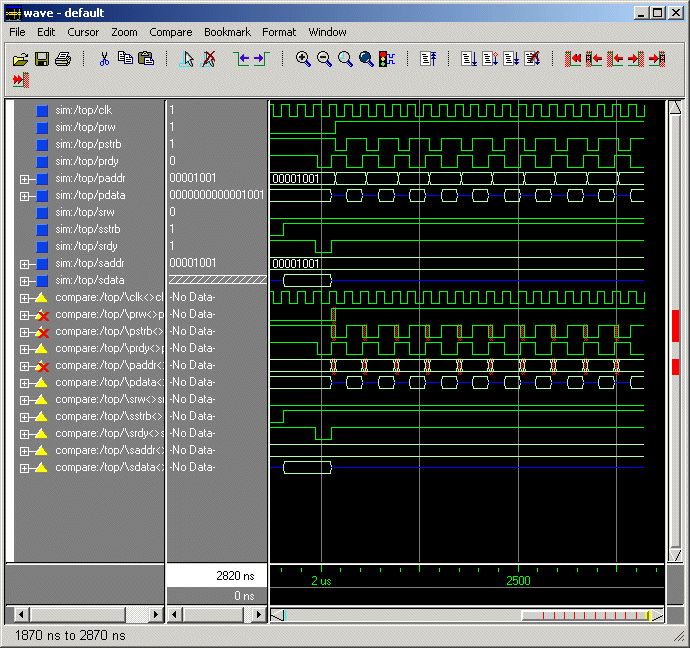

In the Wave window, a signal that contains timing differences between the two simulations is denoted by a red X over its yellow triangle. Red difference markers in the waveform display area show the location of the timing differences on the waveforms, as do the red lines in the horizontal scrollbar at the bottom of the window.

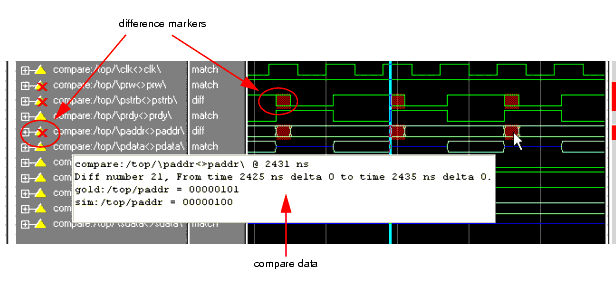

Place your cursor over a difference marker to display a popup containing data about that timing difference.
