Combining items in the Wave window

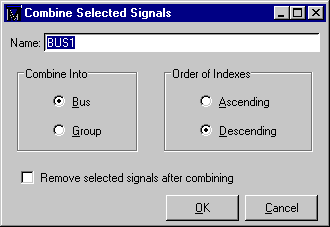

The Wave window allows you to combine signals into buses or groups. Use the Edit > Combine menu selections to call up the Combine Selected Signals Dialog box.

A bus is a collection of signals concatenated in a specific order to create a new virtual signal with a specific value.

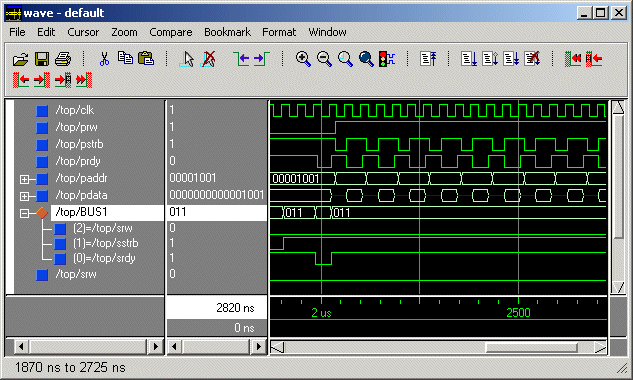

In the illustration below, three data signals have been combined to form a new bus called BUS1. Notice, the new bus has a value that is made up of the values of its component signals arranged in a specific order. Virtual objects are indicated by an orange diamond.
