Viewing comparison results in the List window

You can also view the results of your waveform comparison in the List window.

  1. Select View > List to open the List window.

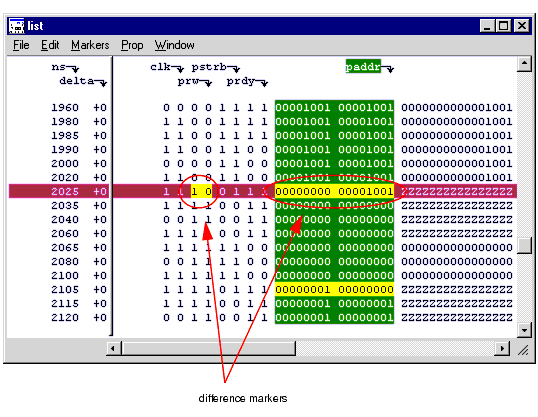

  2. Drag the region from the Compare tab in the Main window to the List window. This will load the compared signals into the List window. Scroll down the window, and you'll see differences shown in yellow.
