Debugging logic in BGA packages can be problematic

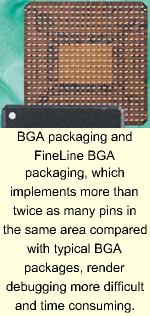

Until now, successive generations of chip packages have kept pace with the relentless increase in chip gate counts. Ever increasing interconnect density and speed have forced the transition from Dual Inline Packages (DIPs), Plastic Leadless Chip Carriers (PLCCs), and Quad Flat Packs (QFPs) to ball-grid array (BGA) packaging. This transition to BGA packaging creates problems for manufacturing, test, and debug. Debug issues, in particular, arise because device pins are literally buried underneath the package. Traditional techniques for probing and inspecting pins cease to work when pins are no longer accessible.

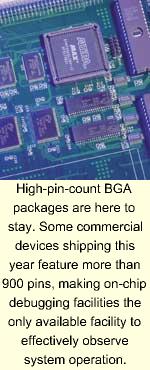

QFP packages, with exposed pins around the periphery, become prohibitively large above a 250-pin count. A 304-pin RQFP package takes up 2.8 in.2 of board space, nearly six times as much as the 0.5 in.2 occupied by a 324-pin Fine-Line BGA. Continuing the trend, commercial devices shipping this year feature more than 900 pins. As a result, BGA packages and buried pins are here to stay.

Manufacturing techniques evolved rapidly to test and verify boards incorporating BGA packages. The JTAG boundary-scan standard, for example, provides a satisfactory solution for verifying correct electrical connection to every pin, and most high-pin-count ASICs incorporate a four-pin JTAG test-access port and boundary-scan capabilities. Various x-ray techniques exist that verify solder integrity-allowing for good old-fashioned (and surprisingly accurate) visual inspection, even when pins can't be seen.

Manufacturing boards with fully tested chips based on a verified design are one thing - debugging a design-in-process is another. "System debug" is often the longest bar in a product development schedule. And debugging is rendered all the more difficult and time consuming when many signals are buried beneath BGA packages.

Traditional debugging tools

The principal tools for debugging digital hardware are the oscilloscope and logic analyzer. A modern oscilloscope used by a young engineer today may have many advanced features, but it's still recognizable as a descendent of the scope used by his or her grandfather 50 years ago. Both scopes and analyzers implicitly assume that signals are accessible somewhere on an exposed metal trace. With ever increasing levels of integration, more and more signals are disappearing inside the package. And now, with the advent of BGA packages, even package pins themselves cannot be probed.

Chip pins have always given engineers something to look at when debugging their systems. On boards full of SSI logic, an engineer could literally trace a problem back through logic, gate-by-gate, with just an oscilloscope probe, and find a problem's origin. Even with high-gate-count chips, a great deal of debugging is accomplished just by probing inputs and outputs. But with BGA packages, there's often, literally, no place to hang a scope probe. Although some device pins can be connected to pc-board test points, this is only practical for a small minority of the pins on a large BGA device. Test points are obviously useful, and traditional scopes and logic analyzers will be with us a long time. But naturally, test points usually represent signals that a logic designer expects to look at. And bugs, by their very nature, inevitably arise where you don't expect them. So, more frequently, you're going to find yourself with a board in one hand, a scope probe in the other, and no way to make them work together.

Very high pin-count packages are used primarily for three kinds of devices: ASICs, PLDs, and processors. PLD debugging is becoming increasingly relevant to ASIC verification, because many ASICs (or pieces thereof) are prototyped and tested in programmable logic as part of a design verification process.

Processor debug

Volumes have been written on techniques for debugging software running on microprocessor-based systems. Early debuggers "trapped" the system, and stopped execution, when a trigger condition occurred on processor I/O pins. This allowed the debugger to set a break-point at any program instruction by watching the bus for a fetch-operation at that instruction's address. This technique was foiled when data and instruction memory migrated to on-chip caches. Debuggers could no longer reliably tell, just from looking at I/O pins, which instruction the processor was currently executing. Modern processors include many "back-door" methods for monitoring a system's internal state. One example is Motorola's BDM (Background Debug Mode), which uses internal, dedicated debugging registers and logic to monitor the processor's operation. The on-chip debugging logic is configured and monitored through a convenient back door - the JTAG test-access port. Debugging microprocessor systems with dedicated on-chip logic accessed through a JTAG port set a precedent for current techniques used in PLDs.

ASIC debug

ASIC methodology by its very nature discourages post-fabrication debugging. ASIC logic designs are debugged through extensive simulation (and other verification methods) before being committed to silicon. The schedule cost of simulation is high: Writing a comprehensive test bench, and grinding through an adequate number of vectors, usually dwarfs calendar time needed to design the ASIC logic itself. But the cost of inadequate simulation/verification is even higher. Debugging techniques for hard-silicon ASICs are expensive and time consuming. And once all bugs are found, another fabrication turn to correct the errors often takes months.

Failure-analysis companies (such as Accurel in Sunnyvale, Calif.) provide services to debug ASIC designs, including techniques such as FIB (Focused Ion Beam), voltage-contrast E-beam, and others. These techniques are usually only applied to a handful of carefully prepared samples and require significant setup and preparation (stripping away the package and exposing the die). The techniques allow probing of internal chip nodes while the device runs at its rated speed. Although this equipment is amazing to behold in action, these services are primarily used as a last resort to save an imperiled design. Exotic post-fabrication probing and "chip surgery" techniques are used more frequently for analysis of process and manufacturing defects.

PLD debug

PLDs allow designers to incorporate complex logic in-system without incurring the combined schedule costs of rigorous simulation and chip fabrication. The prospect of shaving months off time-to-market is very appealing. As an extreme example, a designer can program logic design into a PLD as soon as the first draft is complete - and modify the design as many times as necessary to correct all the bugs. But the designer implicitly trades simulation time for hardware-debug time. This is only a sensible tradeoff if hardware debug is faster than verification through simulation. Hardware debug has a few advantages, but also presents challenges. The advantages include:

• Fidelity: Running a logic design live, in-vivo, exposes the system to real-world system conditions that may be overlooked in even the most carefully designed simulation test bench.
• System speed: The number of clock cycles that can run through actual hardware is larger by several orders of magnitude than what runs through simulation in the same amount of time.

A major challenge, however, is observability. In simulation, every signal, state, and condition in a logic design is reasonably easy to view and trace. This isn't the case in hardware, unless special measures are taken. The vast majority of signals are encapsulated in epoxy, and never see the light of day. And the problem is compounded for BGA hardware, where even I/O pins are substantially inaccessible.

Even early in the game, PLD manufacturers understood that observability was the key to rapid debug. For example, Actel's (Sunnyvale, Calif.) first products, the ACT-1 family introduced in 1988, included a dedicated observability feature whereby any internal node could be connected, at run time, to a "probe" I/O pin on the package. Actel later expanded this feature into a full analysis tool, Silicon Explorer, that gathered data in real time from two internal nodes (using two probe pins) and from 16 external I/Os. Silicon Explorer also included PC-based software for controlling the acquisition tool and viewing acquired signals as logic-analyzer-style waveforms. By literally connecting a scope or logic analyzer to any single internal node, under software control, engineers can conveniently answer the common debug question, "I wonder what this signal is doing." For many bugs, this often provides the critical clue that lets you solve the problem and move on to yet another bug.

Using package pins to observe internal nodes takes debugging only so far. It's often necessary to observe "wider" internal quantities than single nodes (multi-bit internal register values and buses, for example). In principle, you can set aside a large number of device I/O pins as a debug port - but it was the growing need for pins that catapulted designers into BGAs initially. Increasing pin count to facilitate debug drives up system cost and consumes precious I/O resources.

One solution to the signal-width debugging problem is to scan wide signals off-chip serially through a smaller number of pins. Because most RAM-based PLDs are serially programmed and verified through a narrow configuration port, much of the mechanism is already in place to scan wide signals on- and off-chip for debugging. Many newer PLDs are configurable through the same 4-pin JTAG test-access port used for boundary-scan manufacturing tests. If this same JTAG port is used for debugging access, the incremental I/O cost of observability is truly zero. The JTAG test-access port, which is there anyway, makes a great back door for both device configuration and debug observability.

Serial scan-out, by itself, carries one major drawback: A PLD's internal state must be frozen as the selected wide signal is slowly "dribbled out" through the narrow off-chip port. Thus, it's possible to observe a snapshot of the chip's internal state, but not to observe the time behavior of a circuit while it's really operating in-context. In many applications, such as a network data transfer, stopping the logic devices' clock effectively kills the system, without the possibility of gracefully resuming. In such systems, freezing the system to scan out internal signals fatally alters the experiment.

Actel's probe pin provided a high-speed, narrow "peep hole" to view a few internal signals at full speed. You can observe wider signals with serial scan-out, but only by stopping the system, which often isn't possible. The challenge is to find a debugging technique that lets you see wide signal vectors, in real time, without halting a system.

To debug wide (or many) signals in real time, data must be captured quickly, but can only get off-chip slowly. One solution is to log a suitable number of samples (a few thousand) into an on-chip buffer in real time, and later scan the log-buffer out serially (slowly) for inspection and analysis. Storing signals in a buffer requires on-chip blocks of RAM. New PLDs, such as Altera's Apex-20K device, include blocks of reconfigurable on-chip RAM. Altera's SignalTap feature uses available blocks of RAM as the acquisition buffer for an on-chip embedded logic analyzer. The embedded logic analyzer connects to any set of internal nodes, including wide buses or any other collection of signals. Companion software, running under Altera's development system (Quartus), lets the user specify the input signals, trigger conditions, and buffer depth for the embedded analyzer. When triggered, the embedded logic analyzer captures internal signals at full clock speed into the RAM buffer without interfering with system operation. After a capture event, the acquired buffer data is scanned out of the device through a JTAG test-access port, and displayed in a waveform window on a host computer.

When used in BGA devices, the embedded logic analyzer effectively solves the problem of "where do I put my probes." Because the logic analyzer's input connections are specified in software and implemented with the reconfigurable array's routing resources, any and all device nodes are now accessible.

With the packaging of today's devices, on-chip debugging facilities are no longer merely supplemental or convenient - they're now the only available facility to effectively observe system operation. It's both desirable, and possible, to implement the functions of a traditional logic analyzer on-chip by using the reconfigurable routing resources and RAM commonly found on modern PLDs. This technique addresses not only the debugging problems created by BGA packaging and high-density hardware in general, but also closes the "observability gap" between debugging and simulation. Easier debugging of complex PLD designs speeds time to market both for systems incorporating programmable logic, and for ASIC-based systems using programmable logic for prototyping and verification.

Tim Allen is senior engineering manager, Software Engineering, Altera (Santa Cruz, Calif.). Altera can be reached at (408) 544-7000 or www.altera.com.
