Green Mountain VHDL Compiler Professional Edition for Linux

Finally, advanced VHDL simulation on the PC with all the power of a Unix environment.

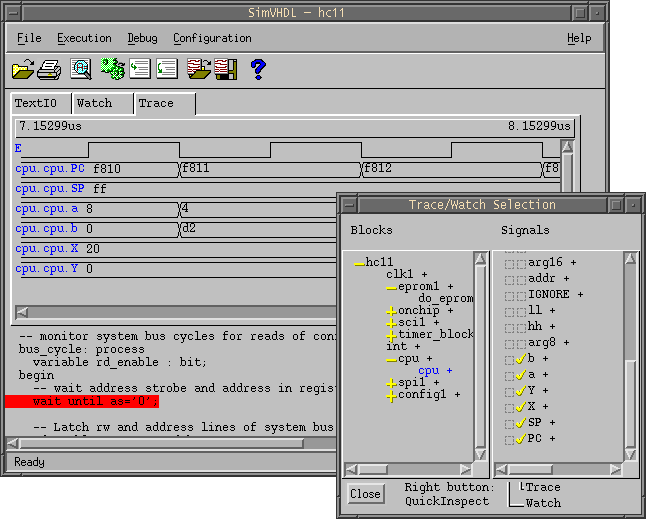

All the power you need for VHDL design in one package from behavioral to structural FPGA timing simulations. The Green Mountain VHDL Compiler, Professional Edition is the second in a line of VHDL products that provides the advanced features for the professional designer (screenshot).

These features are combined with extensive documentaiton with a language tutorial for beginners and a language reference manual for advanced users. The VHDL documentation is further backed up by almost 5000 lines of example VHDL code.

The Green Mountain VHDL Compiler, Professional Edition includes the following features:

Fast VHDL Simulation with 32 bit native compilation.
Fast VITAL design simulation with automatic optimization of VITAL compilant components.
SDF backannotation for post-route timing simulation.
Graphical waveform display.
Source-level debugging with breakpoints.
Supports all recommended VHDL features of IEEE standard 1076-1993
Includes precompiled IEEE libraries
VHDL tutorail and reference manual
Compltete behavioral design example of the Motorola HC11 microcontroller.
Free e-mail technical support and free minor release updates.

Requirements: node lock license registration via internet, e-mail, or phone, 80386 or better PC running Linux (kernel 2.0.x) and X11, 15 Mb hard disk space (installation only), 32 Mb RAM
